Startup Time:6 ms max.
Control Velocity:-10 to 10 V
Data Backup:Backup using the CPU module
External Contact Output:Servo on, driver reset and brake off
Encoder Type:Incremental encoder (phase A/B)
Maximum Pulse Rate:2M pps max. /4-time multiplication mode
Control System:Semi-closed loop control (with voltage output for velocity control) based on encoder feedback
External Contact Input:Limit switch, driver alarm, home

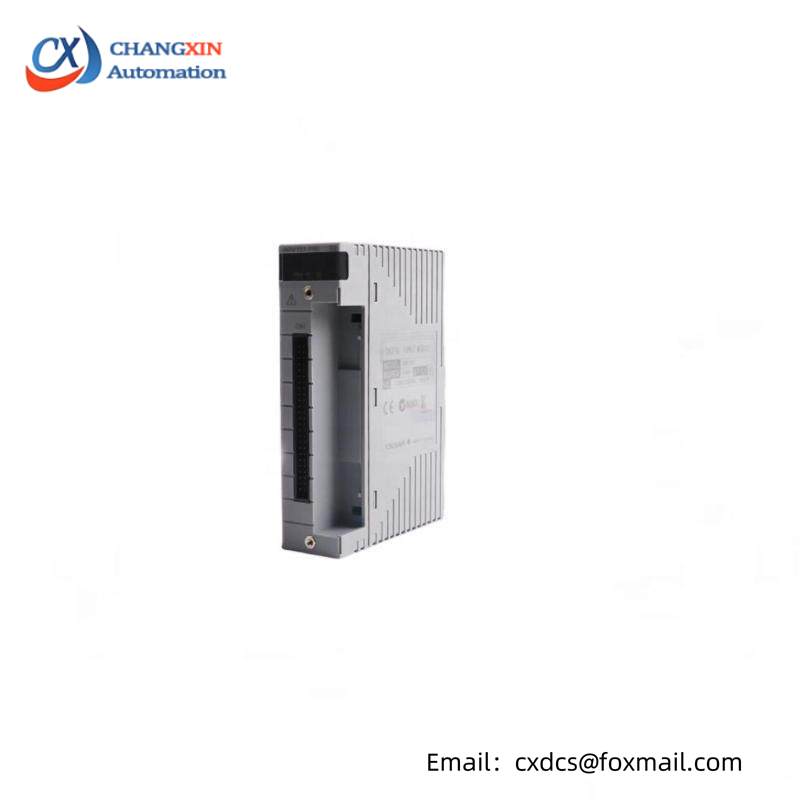

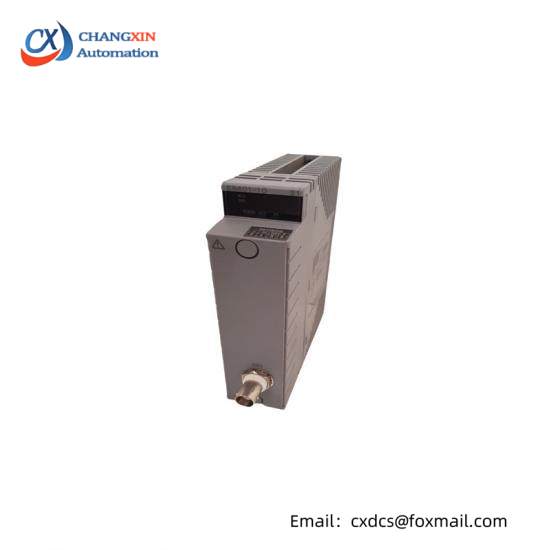

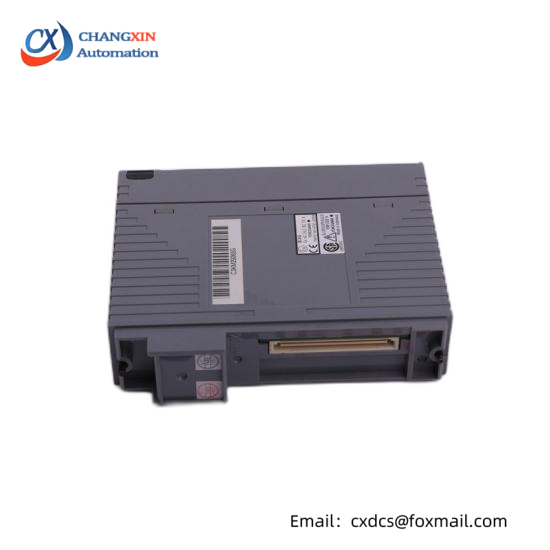

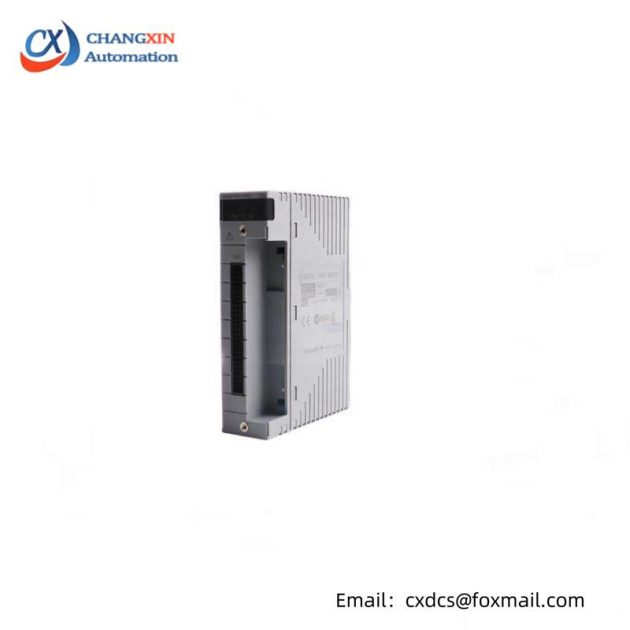

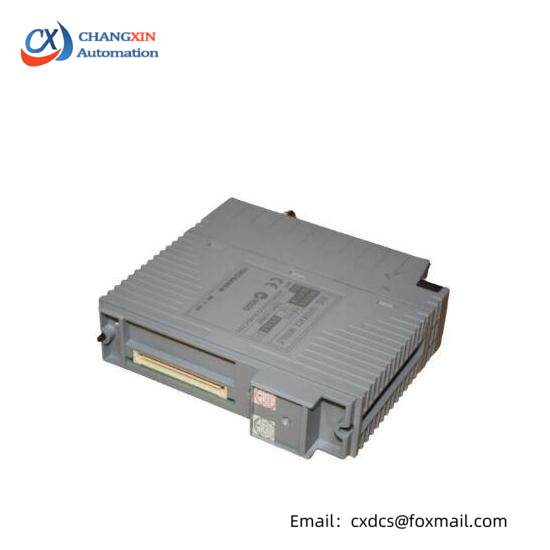

The YOKOGAWA F3NC02-0N Positioning Module is a high-performance solution for industrial automation systems. With a maximum startup time of 6 milliseconds, it ensures swift and accurate responses, making it ideal for applications requiring rapid and reliable motion control. The module supports both absolute and incremental encoders, providing flexibility in system design. Its ability to generate control velocities ranging from -10 to 10 volts allows for fine-tuned control over various mechanical components. Additionally, the data backup feature ensures uninterrupted operation by leveraging the CPU module. The external contact outputs include servo on, driver reset, and brake off functions, enabling seamless integration with other control elements. This positioning module is perfect for industries such as manufacturing, robotics, and material handling, where precision and reliability are paramount.
